ExpEther LSI, FPGA and IP Core
NEC Corporation
- 1G ExpEther ASIC (x1 PCI Express 2.0 - 2.5GT/s)
- 10G ExpEther FPGA (x8 PCI Express 2.0 - 2.5GT/s)
- 40G ExpEther FPGA (x8 PCI Express 3.0 - 8.0GT/s)
- ExpEther IP Core (ExpEther IP Core, ExpEther Wireless IP Core)
40G ExpEther

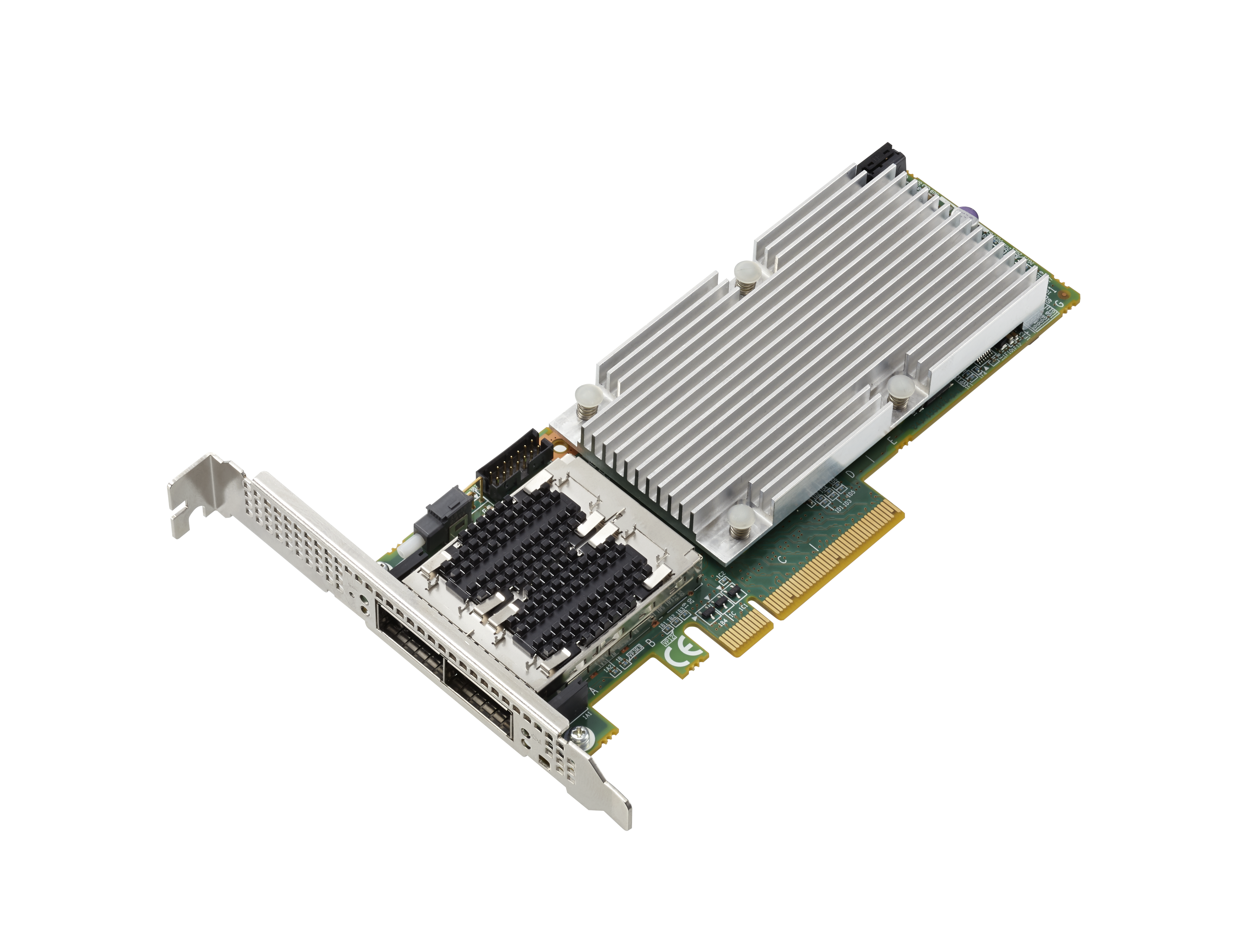

Host Bus Adapter
- 40GbE QSFP+ x 2 ports (80Gbps)
- x8 PCI Express 3.0 (8GT/s)
- PCIe Low Profile Form-factor
- Manufactured by NEC Corporation

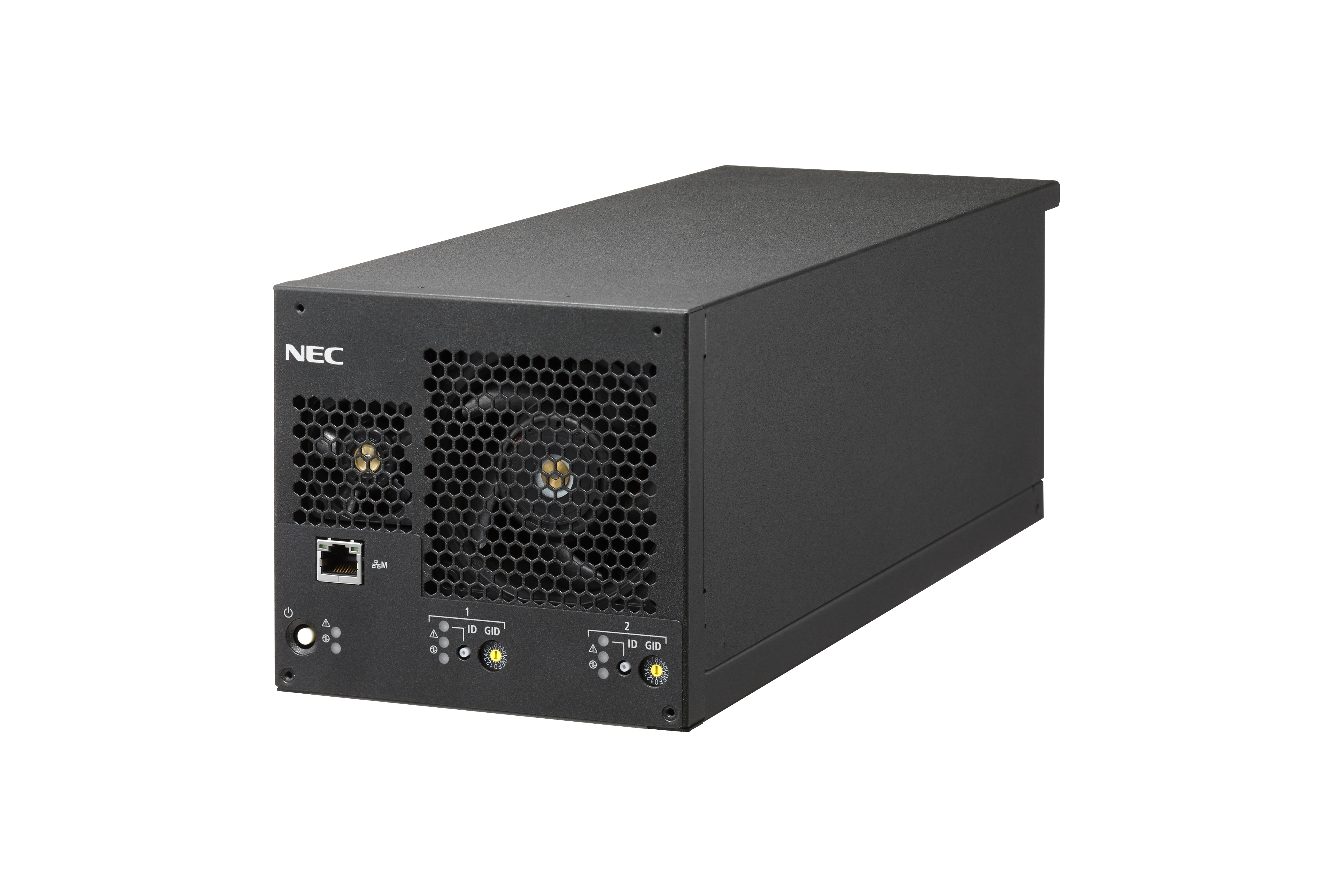

I/O Expansion Box
- 40GbE QSFP+ x 4 ports
- PCI Express 3.0 (8GT/s) x 4 slots (x8 lanes / x16 slot)
- Full height / Full length PCI Express Card
- Manufactured by NEC Corporation
10G ExpEther
Host Bus Adapter
- 10GbE SFP+ x 2 ports (20Gbps)
- x8 PCI Express 2.0 (2.5GT/s)
- PCIe Low Profile Form-factor
- Manufactured by NEC Corporation
I/O Expansion Box
- 10GbE QSFP x 4 ports
- PCI Express 2.0 (2.5GT/s) x 2 slots (x8 lanes / x16 slot)
- Full height / Full length PCI Express Card
- Manufactured by NEC Corporation
1G ExpEther

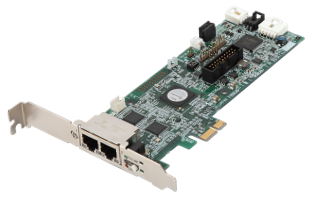

Host Bus Adapter
- 1000BASE-T x 2 ports (2Gbps)
- x1 PCI Express 2.0 (2.5GT/s)
- PCIe Low Profile Form-factor
- Manufactured by NEC Corporation
I/O Expansion Box
- 1000BASE-T x 2 ports
- PCI Express 2.0 (2.5GT/s) x 1 slots (x1 lanes / x16 slot)
- Full height / Half length PCI Express Card
- Manufactured by NEC Corporation
ExpEther Client
- 1000BASE-T x 2 ports
- DVI x 1 port
- HDMI x 1 port
- USB3.0 x 1 port
- USB2.0 x 3 ports
- Headphone jack x 1
- Microphone jack x 1
- Manufactured by NEC Corporation
Use Case

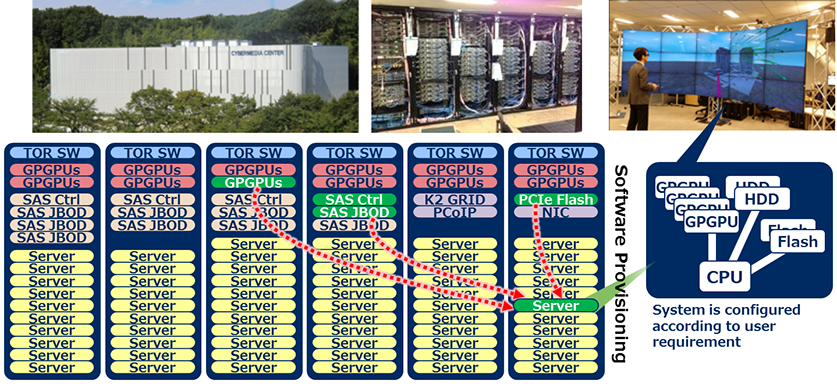

Resource Pool System for HPC (Osaka University)
64 servers and 70 I/O devices are connected by 10G ExpEther products for research in Osaka University.
I/O Devices : GPGPUs, Flash Storages and VDI accelerators
Product List
1G ExpEther

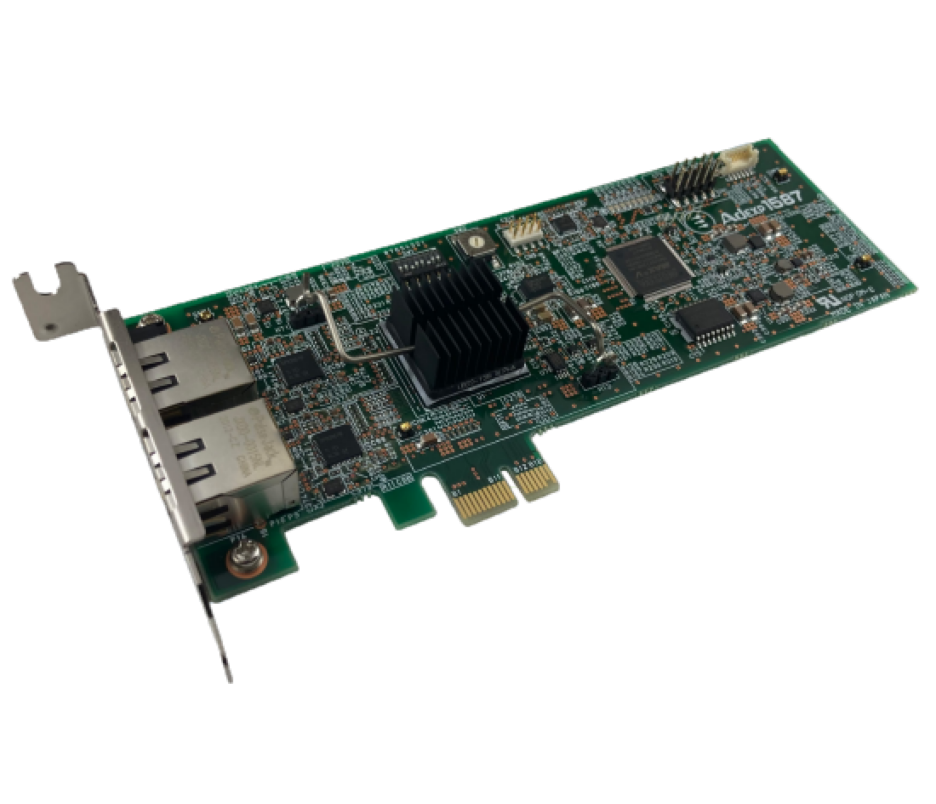

1G ExpEther HBA PCI Express® Add-in Card(AdEXP1587)
Advanet Inc.
- 1000BASE-T x 2 ports (2Gbps)
- x1 PCI Express 2.0 (2.5GT/s)
- Supports PCIe Low Profile form factor

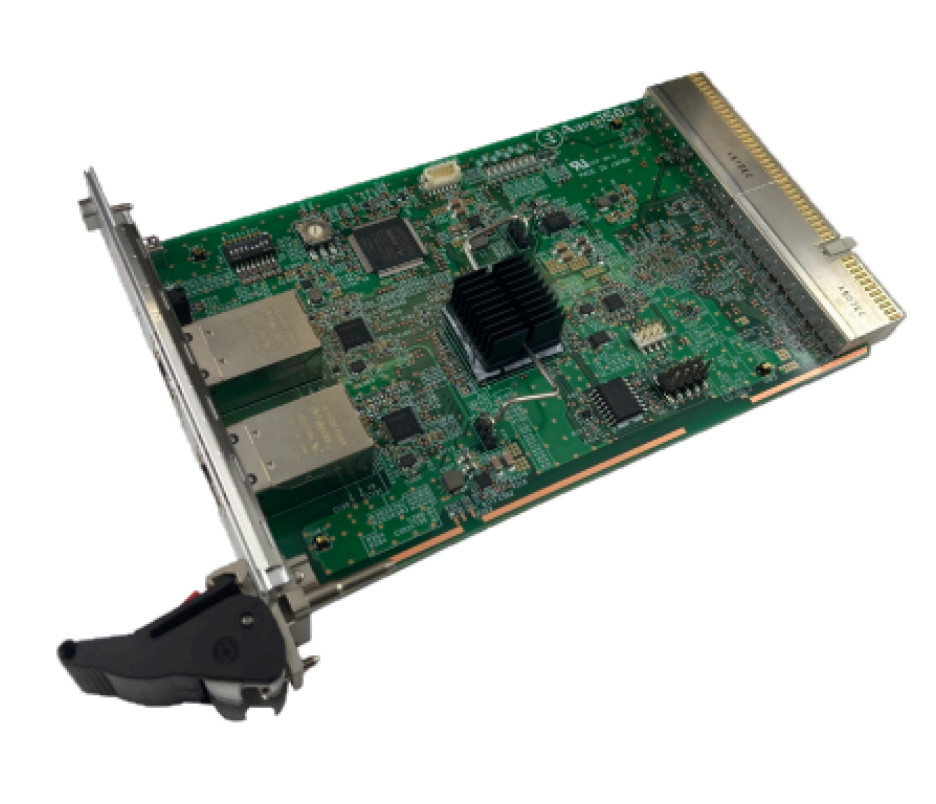

ExpEther Slave CompactPCI® Board(A3pci1586)
Advanet Inc.
- 1000BASE-T x 2 ports (2Gbps)
- CompactPCI Bus 32bit、33.33MHz
- 3U CompactPCI Board
10G ExpEther
Scheduled to be published
40G ExpEther
Scheduled to be published
Wireless ExpEther
Scheduled to be published
